Application

Magnetic roller is mainly used to clear the ferromagnetic impurities in the powder, flake, granular raw materials and so on, and widely applied in ceramics, electricity, mining, plastics, chemicals, rubber, pharmaceutical, food, environmental protection, pigments, dyes, electronics, metallurgy and other industries.

Working Principle

The magnetic roller is constituted of high quality stainless steel tube and high B value rare earth NdFeB alloy, adopting special manufacturing method to install the magnetic roller and thus form the transmission equipment together with the conveyor belt. When the raw material pass through, the iron material and ferromagnetic impurities will be separated by magnetic roller ,  to ensure the safety of products and equipments in good condition.

Features

1. Can be produced with cost saving ferrite magnets, also can be produced with powerful rare earth magnets if needed The maximum magnetic strength can reach 15000Gs.
2. Surface material is 304 or 316L stainless steel,good corrosion resistance and no pollution.
3. No electric power required for magnetic field generation;
4. Two side special design ensure good link with motor.
5. Form automatic separation system together working with belt.
6. Special requirement can be custom made.

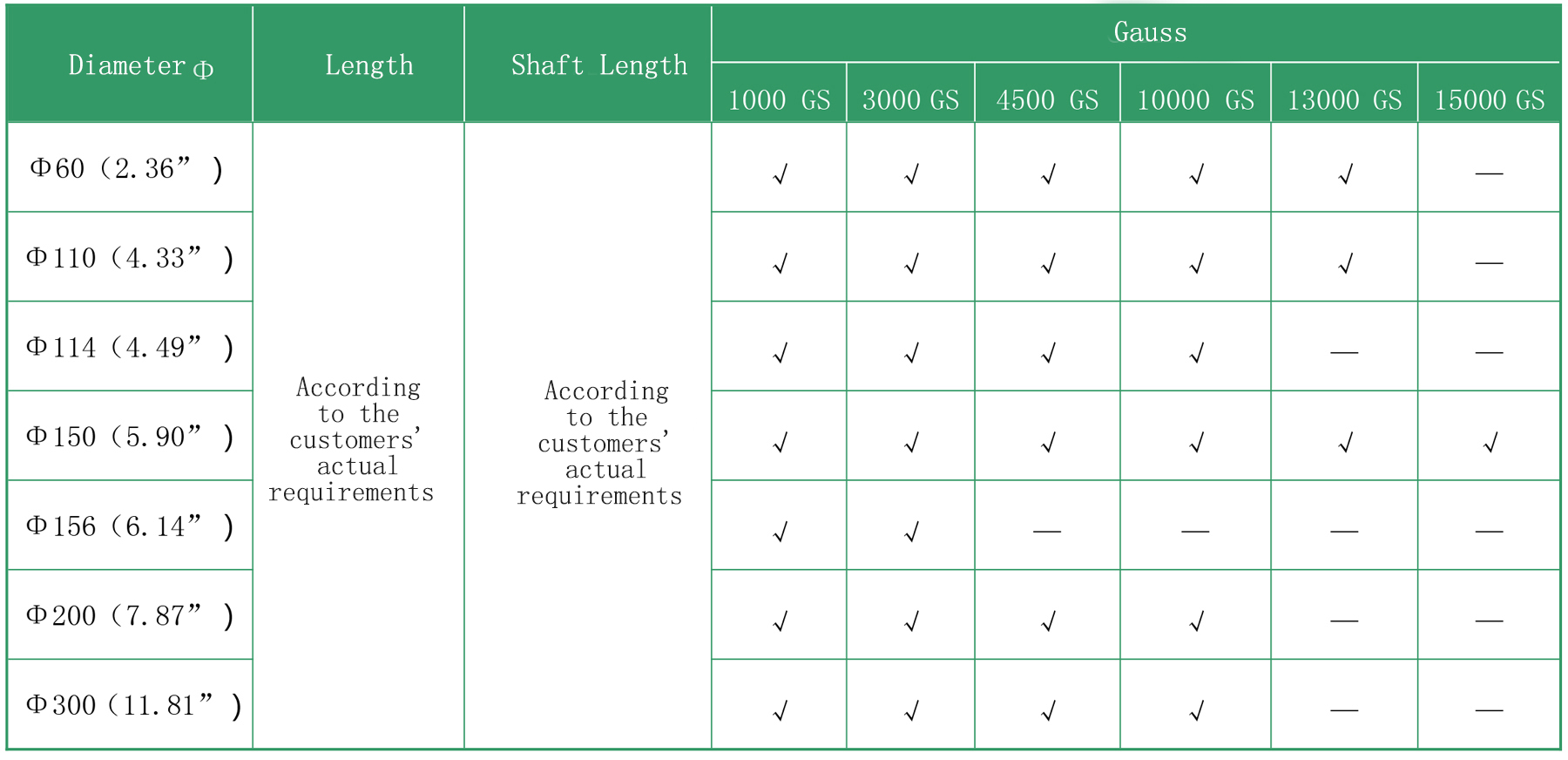

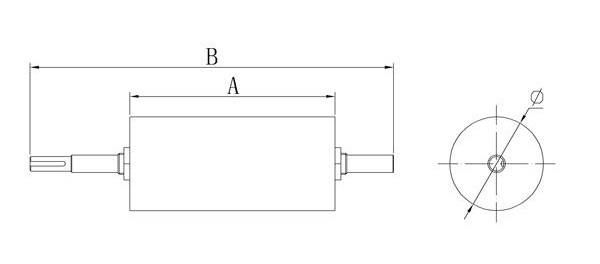

Magnetic Roller  size specification
