Product description and schematic method of Drawer Magnetic Separators
Application
Magnetic filter drawer (Drawer powder separator) is mainly used to clear the ferromagnetic impurities in the powder, flake, granular raw materials and so on, and widely applied in ceramics, electricity, mining, plastics, chemicals, rubber, pharmaceutical, food, environmental protection, pigments, dyes, electronics, metallurgy and other industries.
Working principle
Drawer powder separator is to fix the magnetic bar in the drawer frame made of high quality stainless steel sheet. The magnetic bar is composed of high quality stainless steel tube and high B value of rare earth NdFeB alloy, and adopts special manufacturing method. When the raw material pass through, the iron material and ferromagnetic impurities will be firmly attracted on the surface of the magnetic bar, to ensure the safety of products and equipments in good condition .
Features of Drawer Magnetic Separators
- Low energy consumption, pollution-free,
- Simple structure, easy to install,
- adopt staggered arrangement of magnet bars, well-designed magnetic
spacing to assure full use of magnetic region

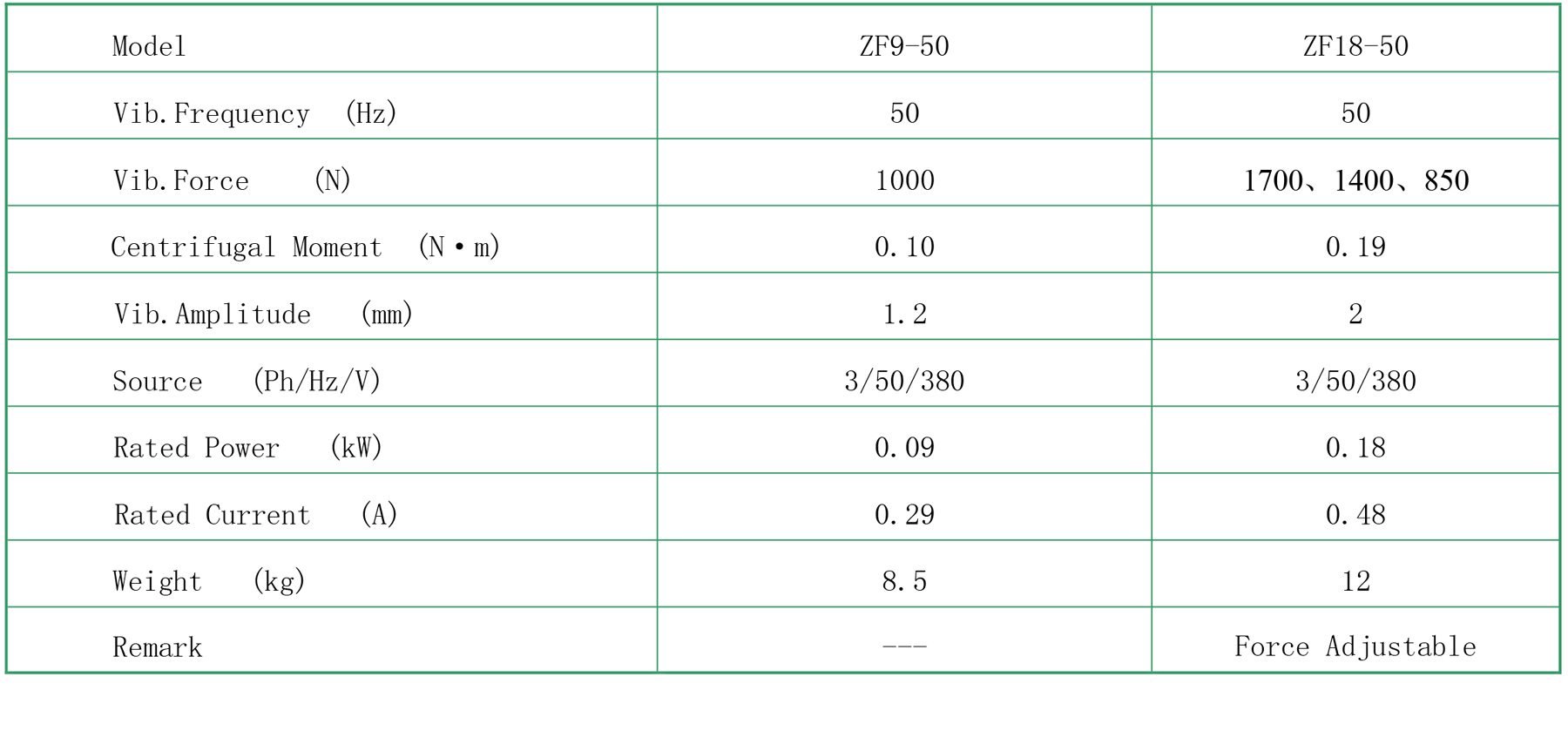

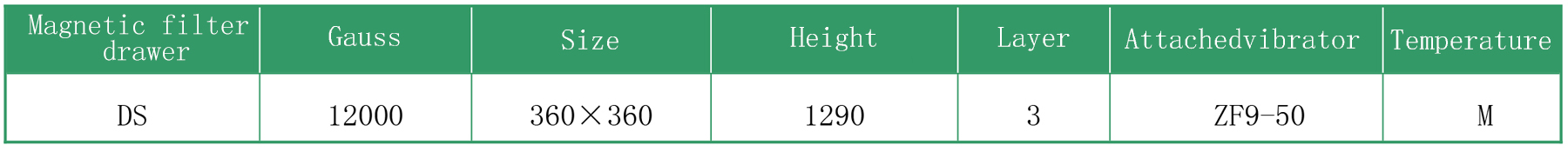

TECHNICAL DATA

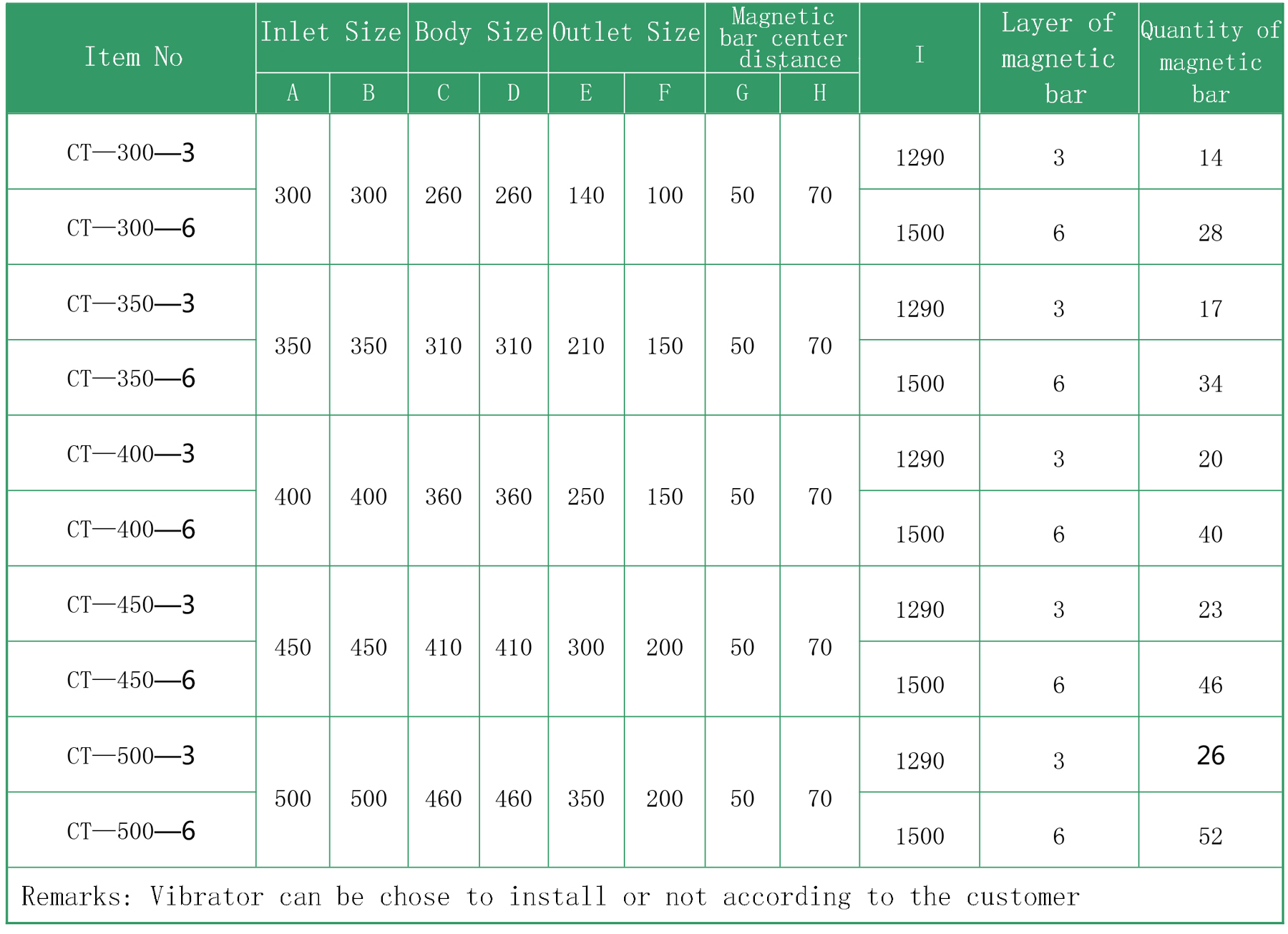

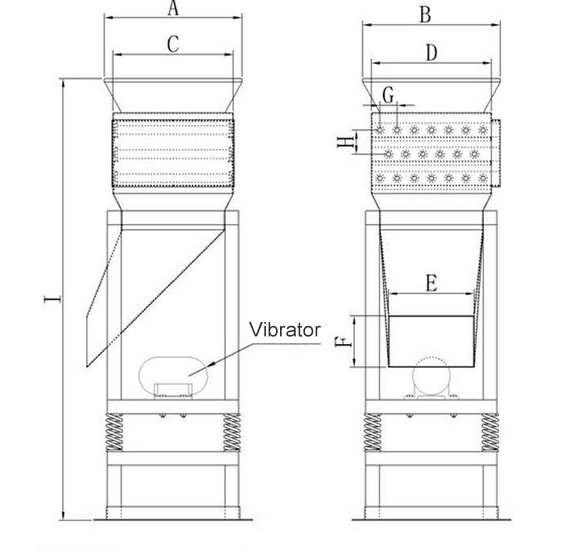

Magnetic filter drawer Size Specification
Product description and schematic method of Easy-cleaning Magnetic Separators
Application
Easy-cleaning Magnetic Separator is mainly used to clear the ferromagnetic impurities in the powder, flake, granular raw materials and so on, and widely applied in ceramics, electricity, mining, plastics, chemicals, rubber, pharmaceutical, food, environmental protection, pigments, dyes, electronics, metallurgy and other industries.
Working principle
Easy-cleaning Magnetic Separator is to fix the magnetic bar on the high quality stainless steel frame. The magnetic bar is composed of high quality stainless steel tube and high B value of rare earth NdFeB alloy, and adopts special manufacturing method. When the raw material pass through, the iron material and ferromagnetic impurities will be firmly attracted on the surface of the magnetic bar, to ensure the safety of products and equipments in good condition.
Features of Drawer Magnetic Separators
- No energy consumption, pollution-free
- Easy to clean, adopt isolation type to filter the iron material to realize
simple structure
- easily install in the production pipeline or at discharge port, save space
- adopt staggered arrangement of magnet bars, well-designed magnetic
spacing to assure full use of magnetic region

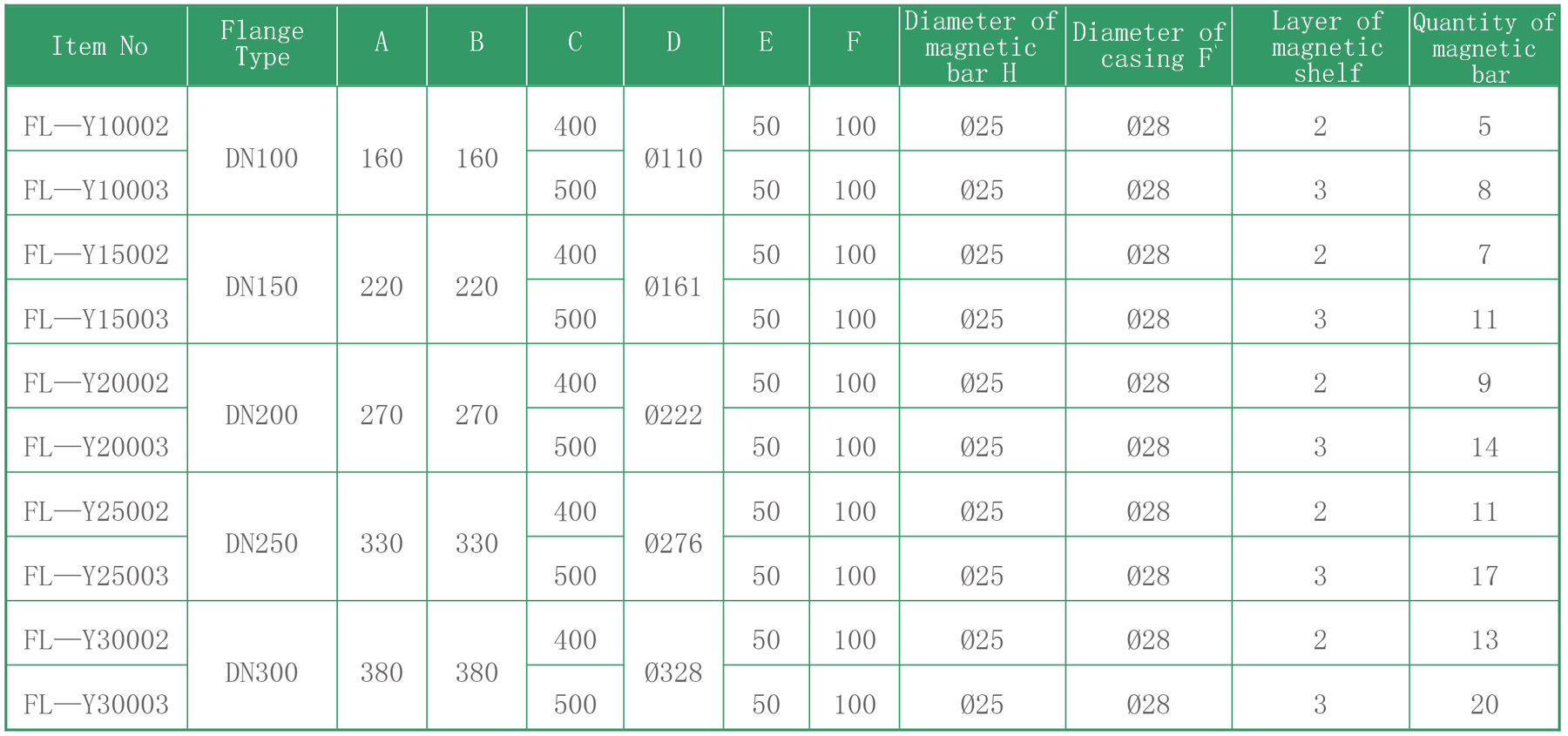

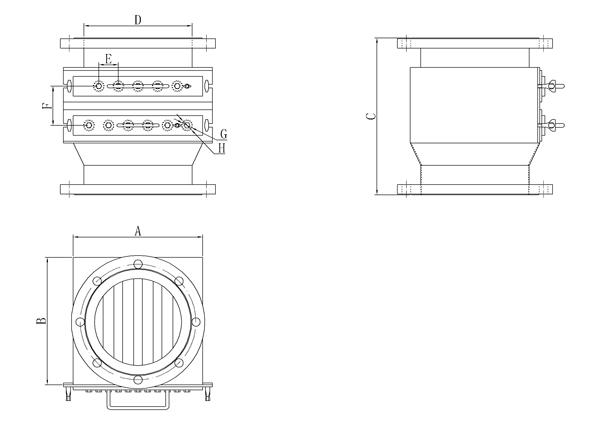

Easy-cleaning Magnetic Separator Size Specification
Product description and schematic method of Hanging permanent magnetic separator
Application
Hanging permanent magnetic separator is mainly used to clear the ferromagnetic impurities(like bolts, nuts, nails, wire, iron slag and so on) in the powder, flake, granular raw materials(such as orn, sugar, flour, slag, slag, plastic, wood, etc.). Thus it has a wide application in ceramics, electricity, mining, plastics, chemicals, rubber, pharmaceutical, food, environmental protection, paint, metallurgy and other industries.
Working principle
Adopting special manufacturing method, hanging permanent magnetic separator is made of high quality stainless steel sheet(or A3 steel) and high B value NdFeB rare earth magnet alloy(or other super magnet). It can be hung on the conveyor belt, trough, pipeline, feed plate, the belt above or end, thus the whole could work as a magnetic filter. When the raw material pass through, the iron material and ferromagnetic impurities will be firmly attracted on the surface of the magnetic bar, to ensure the safety of products and equipments in good condition.
Features of Drawer Magnetic Separators
- No energy consumption, pollution-free
- Simple structure and easy installation
- Can be installed above the production line conveyor belt, pipeline or at
the discharge port, save space
- Adopting rare earth NdFeB alloy as magnetic source, long service life
- Specification or style could change according to customer requirements
or real application situaton

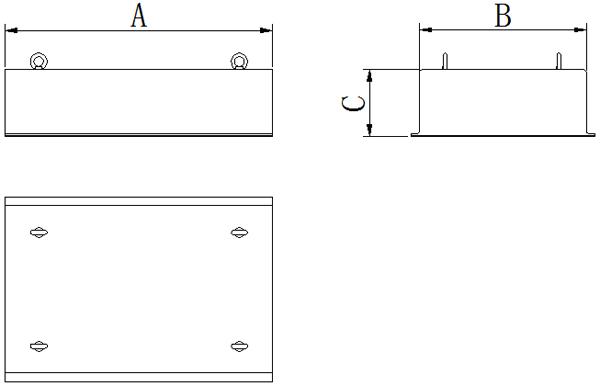

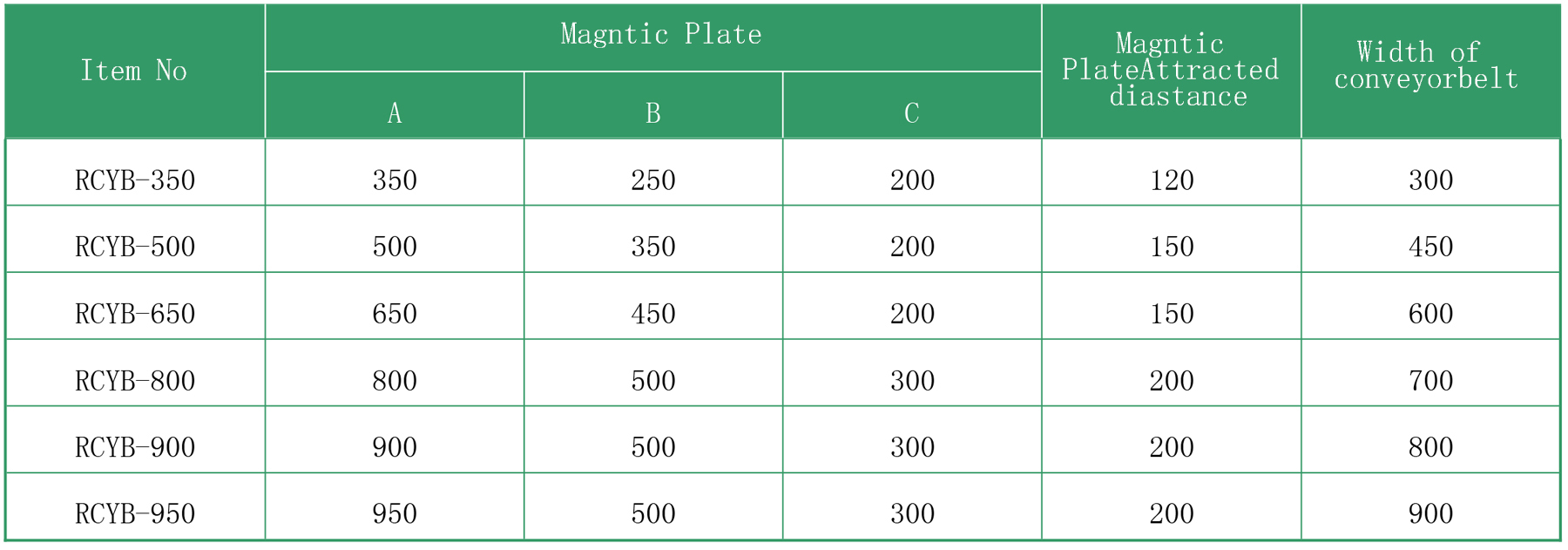

Hanging permanent magnetic separator size specification
